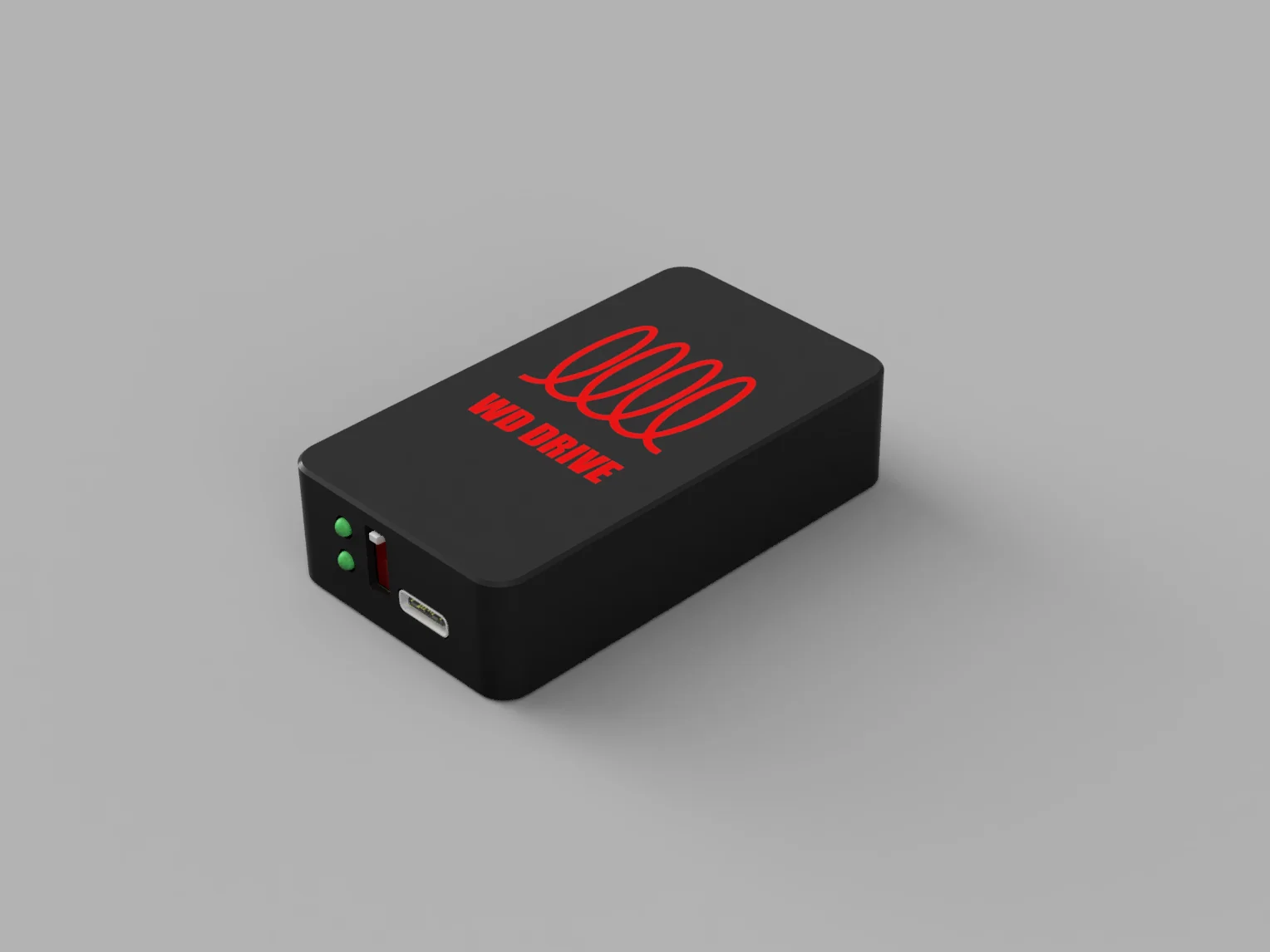

USB-CAN adapter WD-UC-1 — product photo (aluminum housing, two-in-one) — FIG — USBCAN · product photosWD-UCA-1 · photos

USB-CAN Adapters

USB-CAN Adapter

Two-in-one: CANopen master | USB-CAN bridge

An amphibious USB-CAN adapter. On one side it embeds a CANopen master: with the WD servo debugger host software (Windows / Linux / macOS) you can scan nodes, configure parameters, enable the servo, and control position / velocity / torque of WD servo motors (CiA402). On the other side it works as a general USB-CAN bridge, plug & play on Linux and Windows, and compatible with the open-source CANgaroo software.

Function 1: CANopen master
Function 2: USB-CAN bridge
Interface: USB 2.0 + CAN 2.0B
Baud rate: 50 kbps … 1 Mbps

01 Features & Advantages

Why choose USB-CAN Adapter

01
CANopen master: full NMT / SDO / PDO / EMCY support
02
CiA402 servo control: node scan, parameter configuration, enable, jog and homing
03
CANopen master mode: cross-platform servo debug & monitoring in one tool — WD servo debugger
04
USB-CAN bridge mode: plug & play on Linux and Windows, works with the CANgaroo open-source software
05
Desktop-class: debug WD motors, also works with standard CANopen devices

02 Technical Specifications

USB-CAN Adapter

※ Ratings are typical values at 25 °C ambient temperature; see the datasheet for detailed tolerances.

Functions

Mode 1	CANopen master (CiA 301 / 305)
Master host software	WD servo debugger (Windows / Linux / macOS)
Servo control protocol	CiA 402 · 8 operating modes
Mode 2	USB-CAN bridge
Open-source compatibility	SocketCAN / gs_usb / CANgaroo

Operating Modes · CiA 402

PP	Profile Position
PV	Profile Velocity
PT	Profile Torque
HM	Homing
IP	Interpolated Position
CSP	Cyclic Synchronous Position
CSV	Cyclic Synchronous Velocity
CST	Cyclic Synchronous Torque

Interface & Electrical

USB interface	USB 2.0 Type-C
CAN interface	CAN 2.0B · KF2EDGR-3.81-3P terminal
Baud rate	50 kbps … 1 Mbps
Termination resistor	120 Ω switchable
Power supply	USB 5 V (optional external bus power)
LEDs (master mode)	Red = error · Green = active
LEDs (bridge mode)	Red = RX · Green = TX

Environment & Specs

Dimensions (W×H×D)	70 × 40 × 18 mm
Operating temperature	0 … +50 °C
Supported OS	Windows · Linux · macOS
Positioning	Desktop consumer grade

03 Operating Modes

One device, two ways to use it

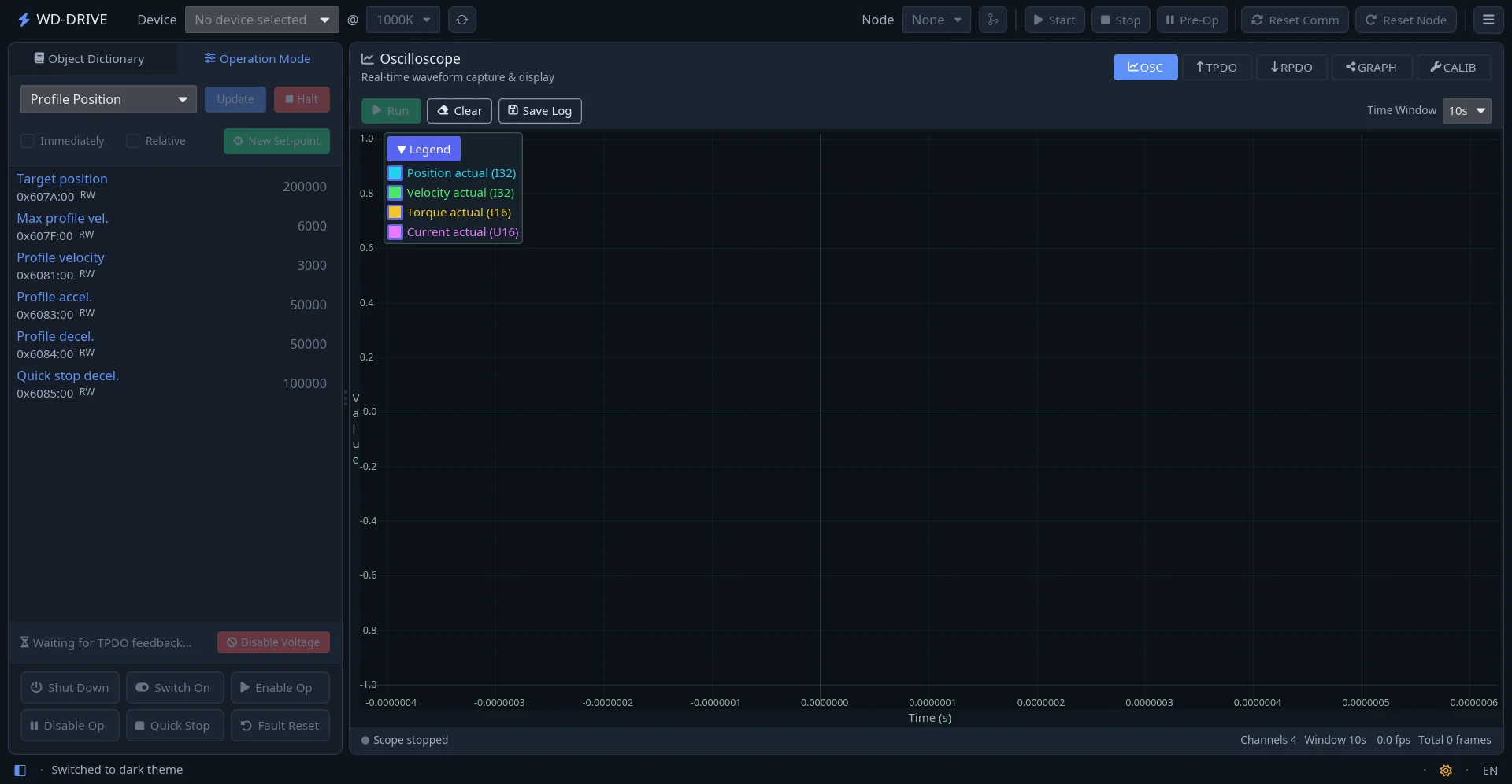

MasterCANopen master: CiA402 servo control (WD servo debugger)

BridgeUSB-CAN bridge (CANgaroo open-source software)

Master mode: WD servo debugger, LEDs red=error, green=active; bridge mode: CANgaroo open-source software, LEDs red=RX, green=TX.

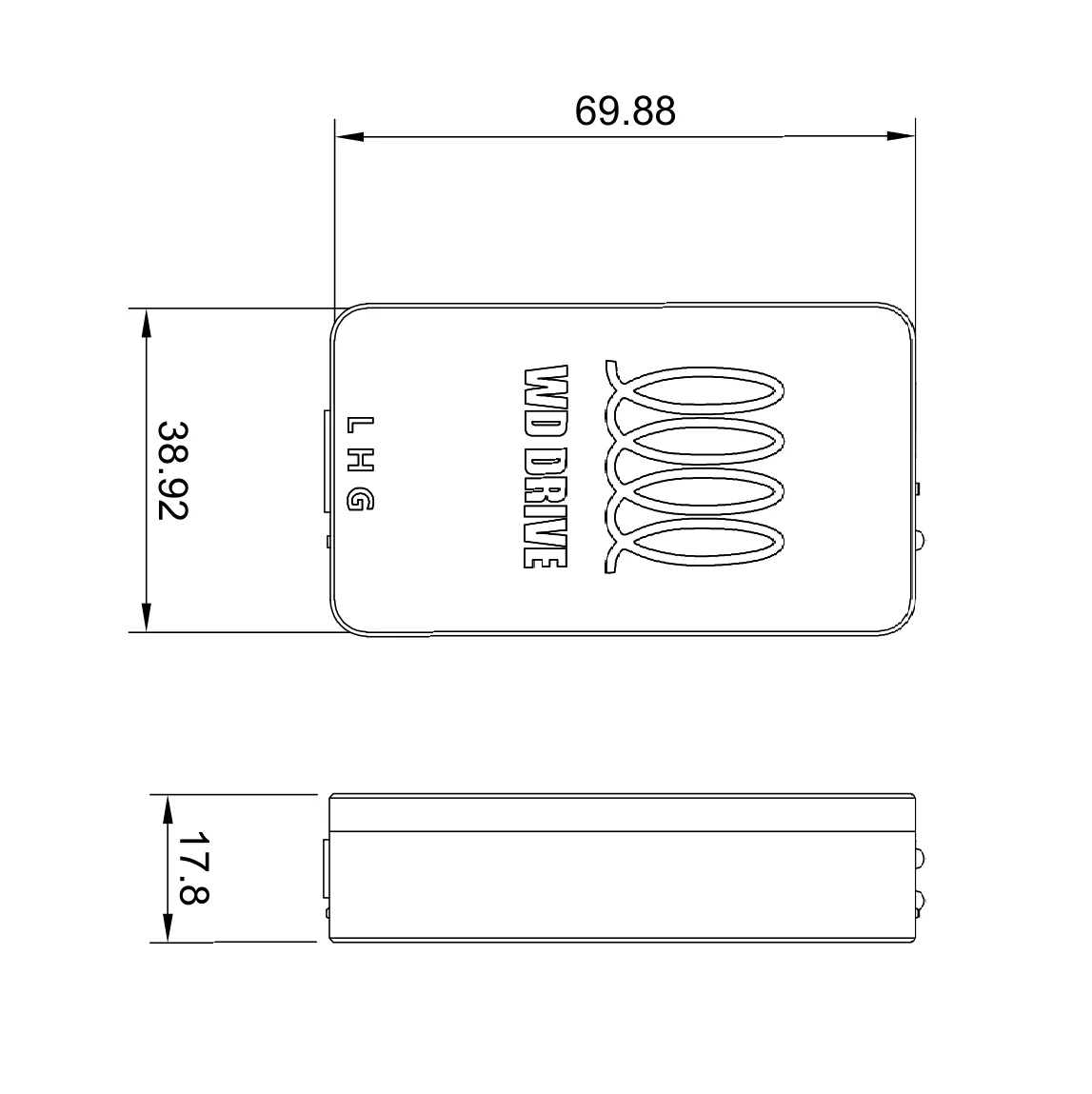

05 Dimensional Drawings

Mounting Dimensions

UNIT: mm

DIMENSION SHEET — USB-CAN AdapterWD-UCA-1 · unit mm

06 Downloads

2D Dimension Sheet DIMENSION SHEETPDF · engineering drawing · 102 KB Host Software HOST SOFTWARECross-platform · servo debug & monitor · contact us

07 Typical Applications

WD servo motor debug & selectionCANopen device development & validationKlipper / 3D printer bus debuggingSocketCAN desktop experimentsTeaching & maker projects
